The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.

Illuminated Push Button Switches R0195

• Rating：2A 36VDC

• Contact Resistance：50mΩ max（initial）

• Insulation Resistance：1,000MΩ min 500VDC

• Dielectric Strength：2,000V RMS 50~60HZ

• Operating force：5.5N max

• Electric Life：20,000 cycles

• Operating Temperation：-20℃ ~+ 70℃

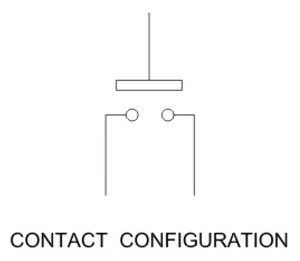

• Switching Circuit：OFF~(ON)

• IP class：IP65 protection

• Torque：5~14NM max.applied to nut

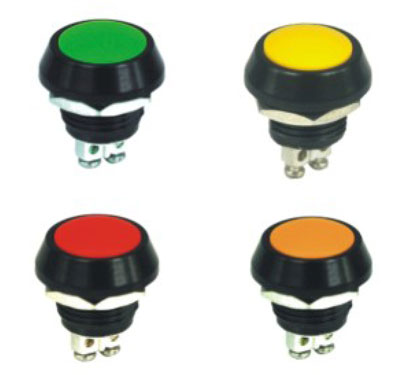

Illuminated Push Button Switches R0195 Figure

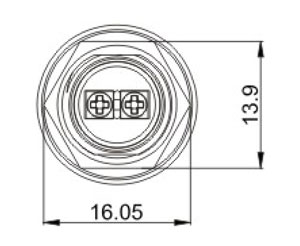

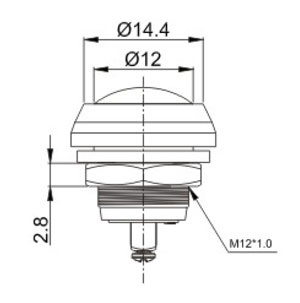

Illuminated Push Button Switches R0195 Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating force	Electric Life	Operating Temperation	Total Travel	Download
R0195-MB-U	2A 36VDC	50mΩ max（initial）	1,000MΩ min 500VDC	2,000V RMS 50~60HZ	5.5N max	20,000 cycles	-20℃ ~+ 70℃	/	NULL
R0195-MB-G	2A 36VDC	50mΩ max（initial）	1,000MΩ min 500VDC	2,000V RMS 50~60HZ	5.5N max	20,000 cycles	-20℃ ~+ 70℃	/	NULL
R0195-PB-B-R	100mA 24VDC	50mΩ max（initial）	1GΩ min at 500VDC	1,000VAC RMS	2N~5N	500,000 cycles	/	2.5mm	NULL
R0195-PB-R	100mA 24VDC	50mΩ max（initial）	1GΩ min at 500VDC	1,000VAC RMS	2N~5N	500,000 cycles	/	2.5mm	NULL
R0195-PSB-B	100mA 50VDC	50mΩ max	1GΩ min at 500VDC	1,000VAC RMS	2N~5N	500,000 cycles	/	1.5mm	NULL
R0195-PZB-B	100mA 50VDC	50mΩ max（initial）	1GΩ min at 500VDC	1,000VAC RMS	2N~5N	500,000 cycles	/	1.5mm	NULL
R0195-A-PB-R-R	100mA 24VDC	50mΩ max（initial）	1GΩ min at 500VDC	1,000VAC RMS	2N~5N	200,000 cycles	/	2.5mm	NULL
R0195-A-PB-Y	100mA 24VDC	50mΩ max（initial）	1GΩ min at 500VDC	1,000VAC RMS	2N~5N	200,000 cycles	/	2.5mm	NULL
