The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.

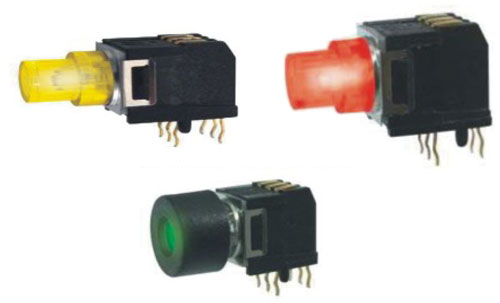

Ultra Low Profile Tactile Switches R2995A

• Pole-Position：1P2T,Right Angle Push on-on momentary

Type,with or w/o LED are Available

• Rating：Power Min./Max.:0.02VA/1.0VA

Current Min./Max.:0.1mA~100mA

Voltage Min./Max.:DC 20mV~DC 32V

• Contact Resistance：250mΩmax，1.5VDC;100mA,

by Method of Voltage DROP

• Insulation Resistance：100MΩ min.500VDC

• Dielectric Strength：Breakdown is not Allowable;

250 VAC for 1 Minute

• Operating Force：400±125gf

• Operating Life：50,000 cycles

• Operating Temperature Range：-20℃ ~70℃

• Total Travel：0.20mm MAX

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Operating Life	Operating Temperature Range	Total Travel	Download
R2995A-NWY	Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V	250mΩmax，1.5VDC;100mA,by Method of Voltage DROP	100MΩ min.500VDC	Breakdown is not Allowable;250 VAC for 1 Minute	400±125gf	50,000 cycles	-20℃ ~70℃	0.20mm MAX	NULL
R2995A-NWR	Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V	250mΩmax，1.5VDC;100mA,by Method of Voltage DROP	100MΩ min.500VDC	Breakdown is not Allowable;250 VAC for 1 Minute	400±125gf	50,000 cycles	-20℃ ~70℃	0.20mm MAX	NULL
R2995A-NWG-CAP-K	Power Min./Max.:0.02VA/1.0VA Current Min./Max.:0.1mA~100mA Voltage Min./Max.:DC 20mV~DC 32V	250mΩmax，1.5VDC;100mA,by Method of Voltage DROP	100MΩ min.500VDC	Breakdown is not Allowable;250 VAC for 1 Minute	400±125gf	50,000 cycles	-20℃ ~70℃	0.20mm MAX	NULL
