The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.

Illuminated Push Button Switches R292

• Circuit：SPST

• Current Rating：100mA

• Contact Resistance：200mΩ Max.(Initial)

• Insulation Resistance：100MΩ Min

• Operating Force：250±100gf

• Voltage Rating：12VDC

• Operating Temperature：-20℃ ~+70℃

• Dielectric Withstanding Voltage：250VAC for 1 minute

• Full Travel：4.5mm±0.2mm

• Mechanical LifeOver：1,000,000 cycles

• Electrical LifeOver：100,000 cycles

• Function：Momentary

• Manual Welding：350℃ for 3 seconds

• Function：OFF-(ON)

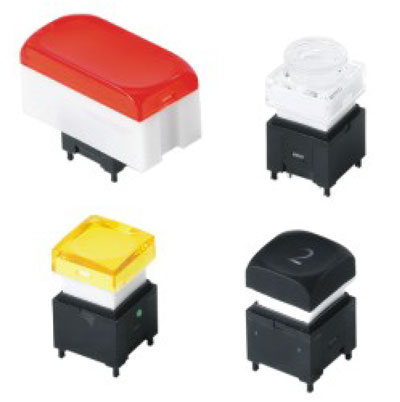

Illuminated Push Button Switches R292 Figure

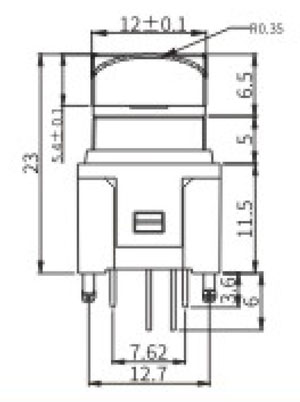

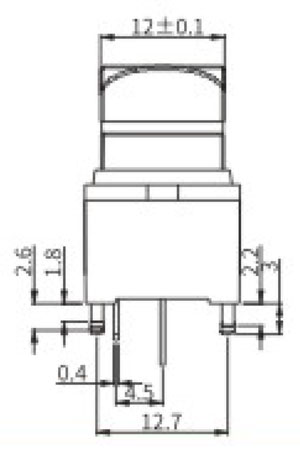

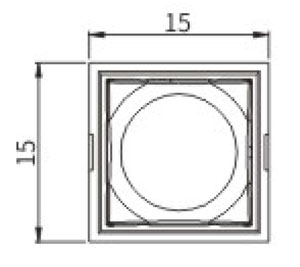

Illuminated Push Button Switches R292 Structure Diagram

Part Number	Contact Resistance	Insulation Resistance	Operating Force	Voltage Rating	Operating Temperature	Dielectric Withstanding Voltage	Mechanical Life	Electrical Life	Download
R2922-□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	NULL
R2925-□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	NULL
R2927□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	NULL
R2927□-2W-RGBT	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	NULL
R2924□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	NULL
